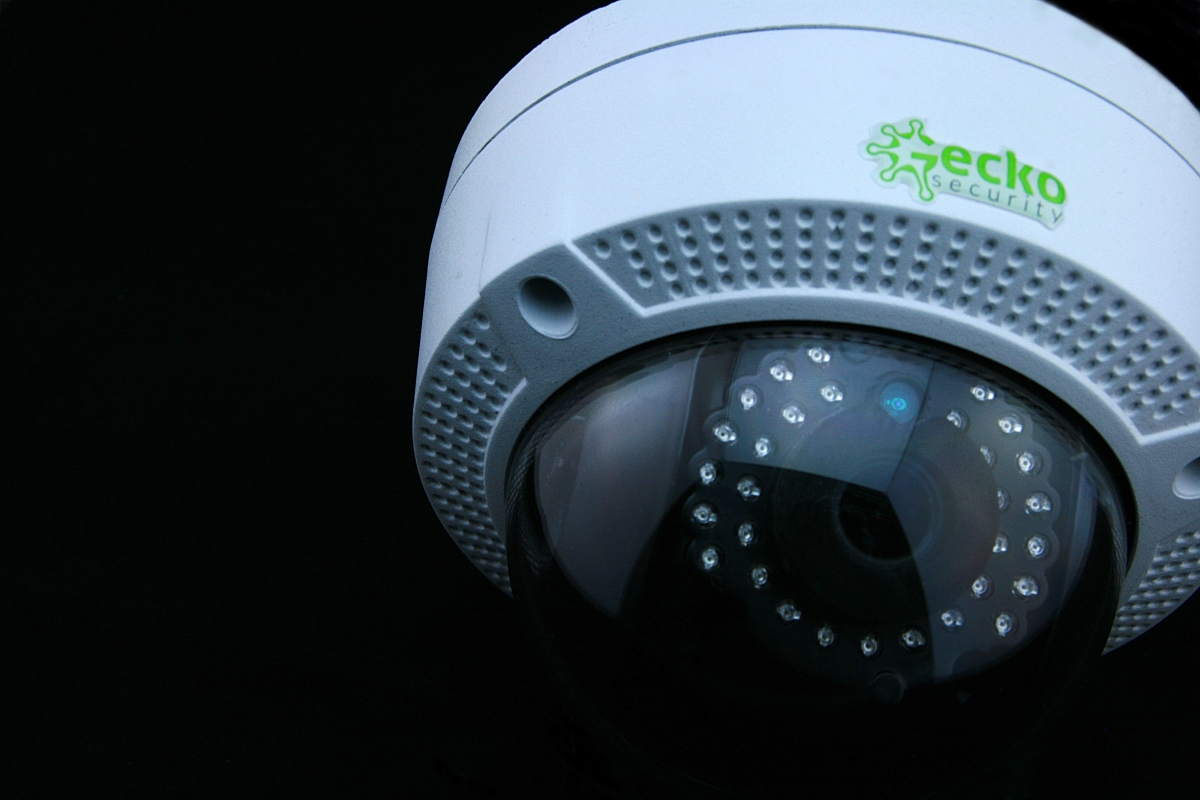

3MP Dome IP Security Camera

$159.97

The GD-328 is our most versatile IP camera.  Using the Gecko as our inspiration for this IP camera, it features a compact, low profile and discreet housing that is sure to blend in with its surroundings. The camera comes standard with a 2.8mm fixed lens that fits almost all installation scenarios.  Other special lens options are available by request.  Image quality is superb with a 2048 × 1536 (3 Megapixel) resolution.  It is equipped with infrared LEDs for low light or night viewing of objects up to approximately 100ft. The camera is powered via POE (Power Over Ethernet).  POE reduces labor costs by only requiring one CAT5e cable to each camera providing both video and power.  The camera can also be powered via a 12V power supply (not included).

Installation is a Breeze:

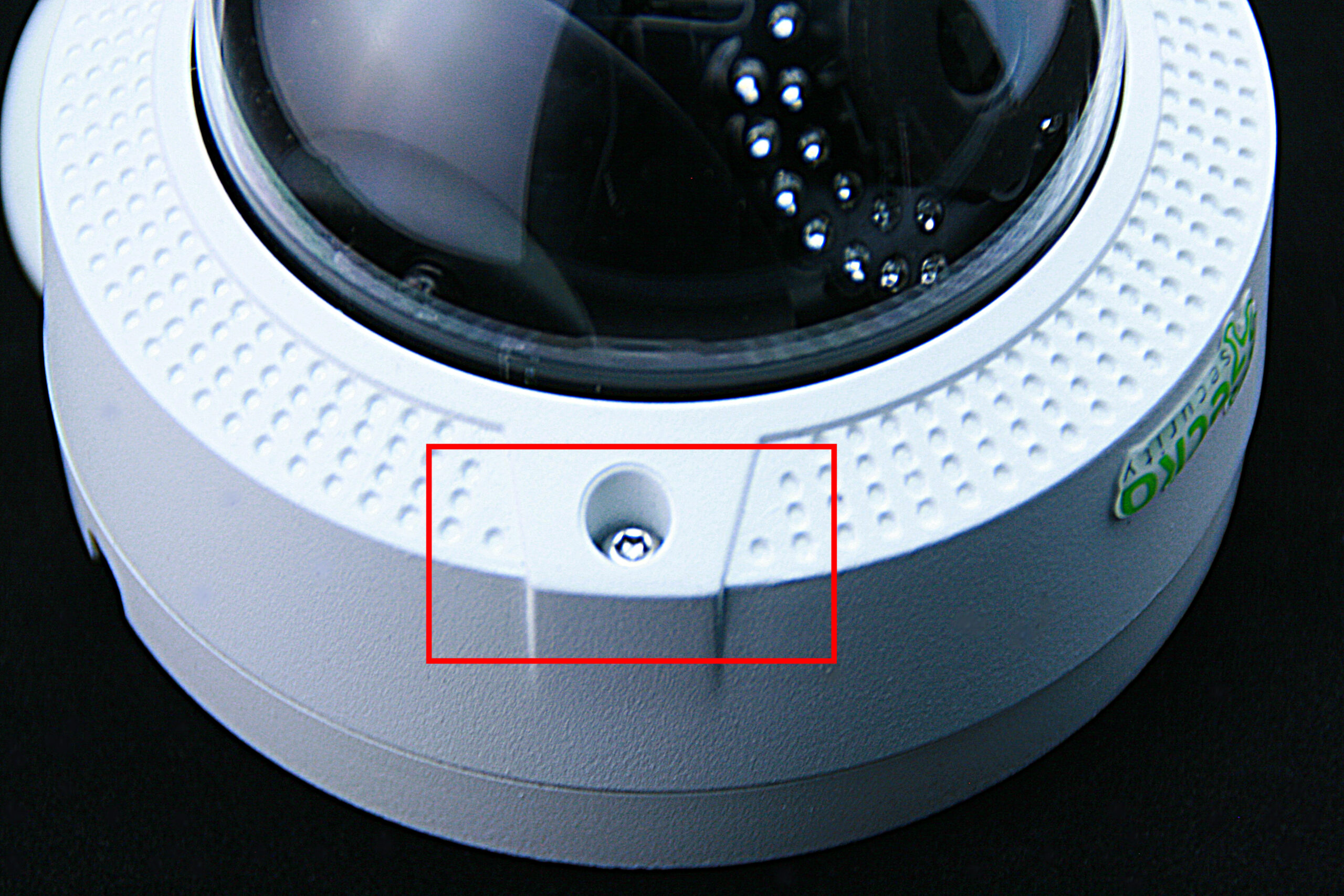

  • Unscrew the screws securing the dome to the base.  (The dome is secured by 3 torx screws that remain in the dome during installation/removal.  (No more searching for screws you dropped in the grass!)Optimized-3MP006

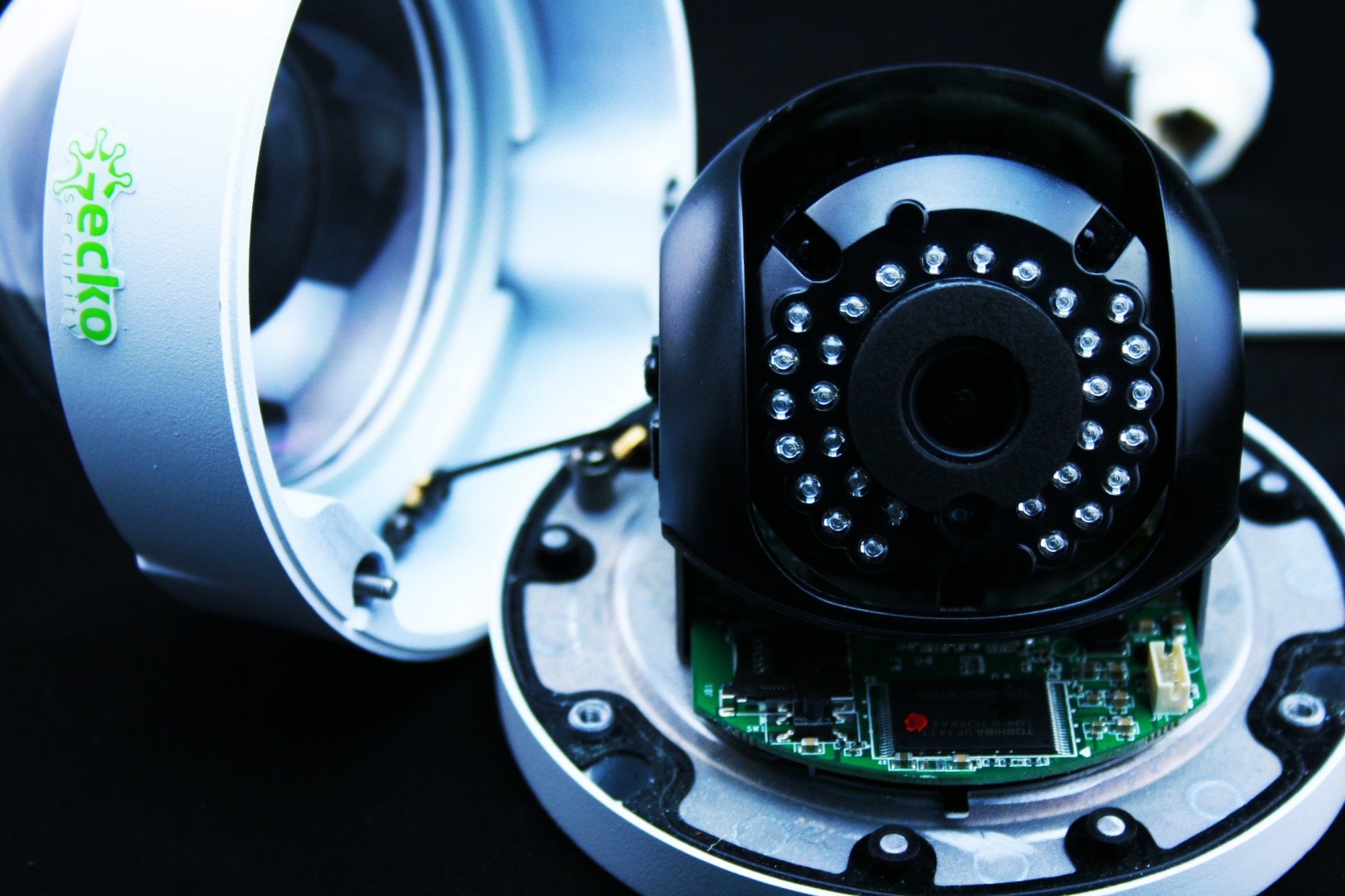

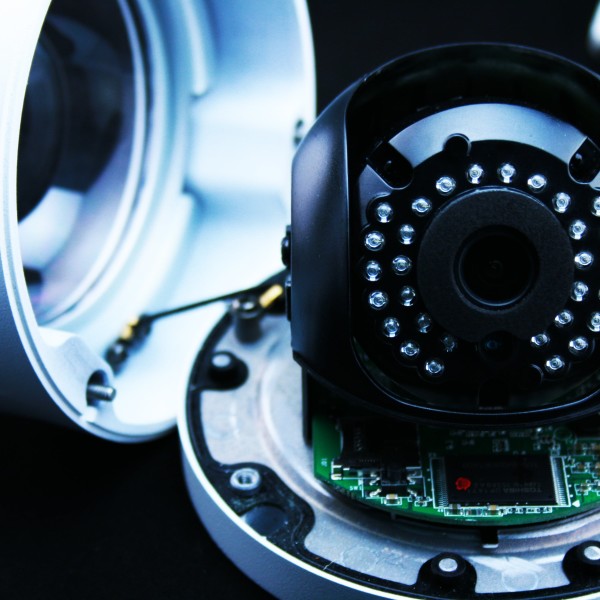

  • The dome hangs on the base via a tether.3MP003-min
  • Secure the base to a wall or ceiling with the provided screws (3).
  • Rotate the 3 axis lens in the direction of your coverage area.
  • Reinstall the dome.

Every Order Includes:

  • Camera
  • USB stick with Software (1 per order)
  • Mounting screws and anchors
  • Torx wrench
  • Template

We are so sure that you’ll be satisfied with this camera we are offer a “No Questions Asked”  30-Day Money Back Guarantee and a 3 Year Limited Warranty.



Are you a Contractor interested in becoming a Gecko Security Dealer? Please inquire here to see if you qualify.



Categories: ,

Product Description

  • 3.2 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • IR LEDs :Approx 65 to 100 ft(About 20 to 30m)
  • Vandal-proof housing
  • 3D DNR & DWDR & BLC
Camera
Image Sensor 1/3” sensor
Min. Illumination 0.14 [email protected], AGC on
0 lux with IR
Shutter Speed 1/25s ~ 1/100,000s
Lens [email protected]
2048 × 1536: angle of view: 86°
1920 × 1080: angle of view: 98.5°
Lens Mount M12
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 65°
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 codec profile Main profile
Bit Rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. Resolution 2048 × 1536
Frame Rate 60 Hz: 20fps (2048 x 1536), 30fps (1920 ×
1080), 30fps (1280 x 720)
50 Hz: 20fps (2048 x 1536), 25fps (1920
× 1080), 25fps (1280 x 720)
Image Settings Saturation, brightness, contrast adjustable through client software or web browser
BLC Yes,zone configurable
Network
Network Storage NAS ( iSCSI optional)
Alarm Trigger Motion detection,tampering alarm,network disconnect,IP address conflict,storage exception
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility ONVIF, PSIA, CGI
General functionalities Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface 1 RJ45 10M / 100M ethernet port
General
Working Temperature
/Humidity		 -13°F ~ 140°F(-25°C ~ 60°C)   humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Ingress protection level IP66
IR Range Approx 65 to 100 ft(About 20 to 30m)
Dimension Φ4.4”x3.2”(Φ111.0 × 82.4 mm )
Weight 1.1lb(500g)
